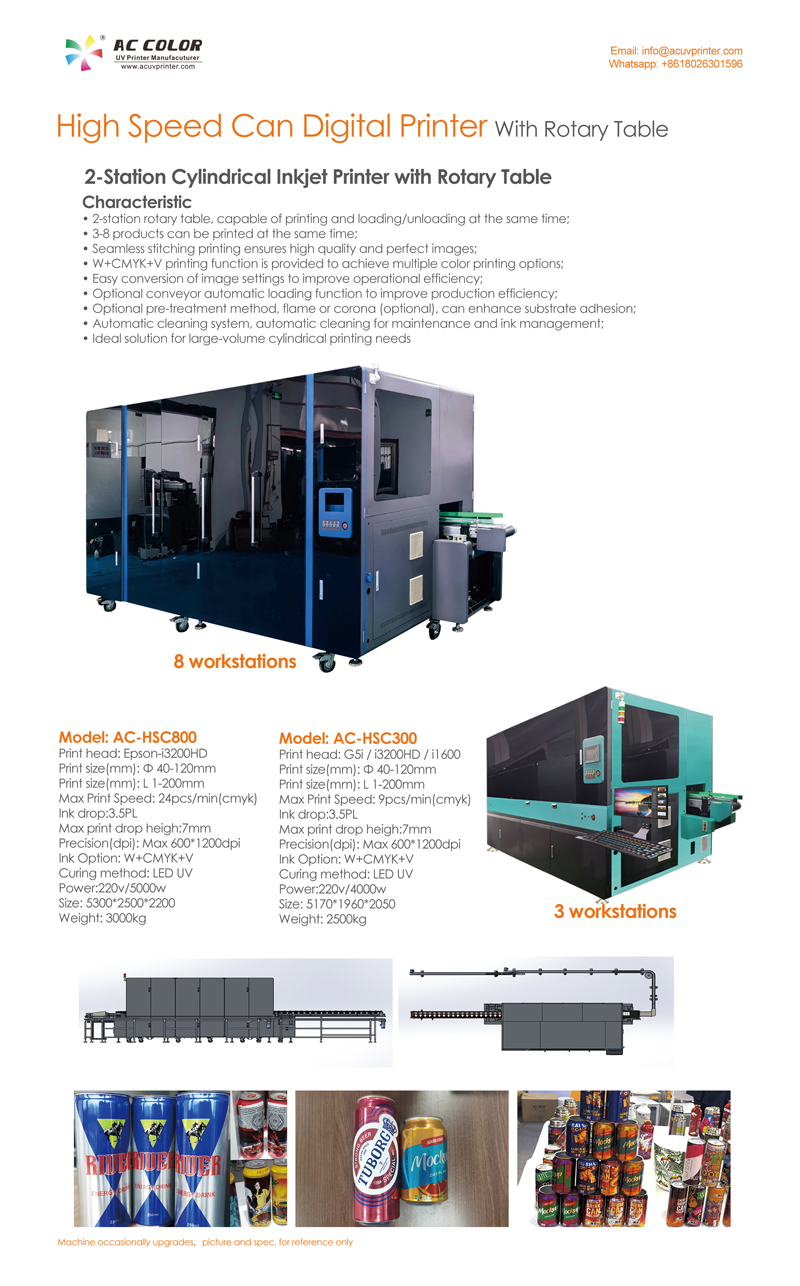

2 Station Cylindrical Inkjet Printer with Rotary Table

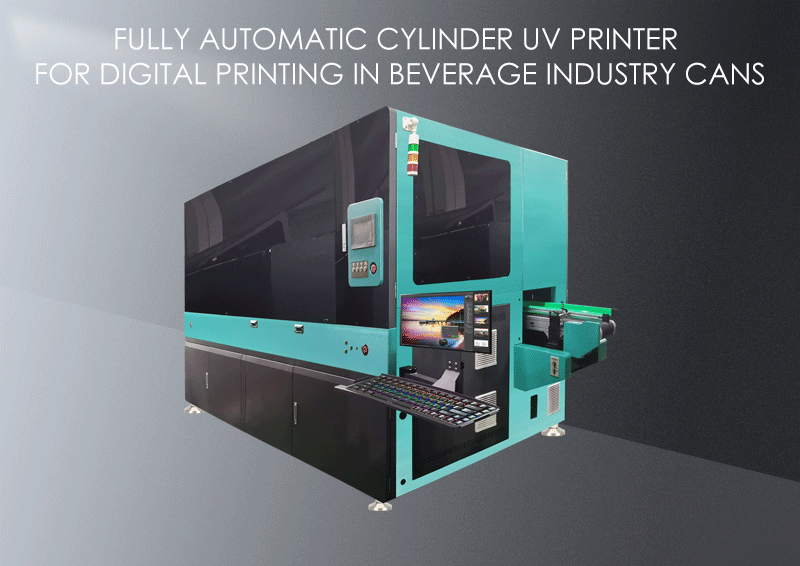

Beverage Can UV Printer



Create your own print



With its automated loading, rotary table,touch screen display, optional pre-treatment methods, W + CMYK print capability, easy changeover and image setup, and auto cleaning and capping system, delivers exceptional performance and versatility for cylindrical printing applications.







TECHNICAL PARAMETER

Model NO.:	AC-HSC
Printing Specifications:	2 Station with Rotary Table
Printhead Configuration:	Toshiba-CF3R/Ricoh-G5i/Epson-i1600 (Optional)
Printhead Precision (PL):	3.5
Printhead Quantity Option (pcs):	2-3
Ink Option:	W+CMYK+V
RIP Software:	RIP / ONYX(optional)
Curing Method:	Water-Cooled LED Curing
Feeding Method:	Customized Fixture
Print size(mm)：	Diameter (40-150) and Length(0-240)
Printing Resolution (dpi):	Max600*1800
Power Supply Requirements:	220V
Operating System:	Microsoft Windows 10
Environmental Requirements:	Temperature 20-28 ℃ Relative Humidity 40-60%
Certification:	CE / ROHS / SGS

















































CHARACTERISTIC

• 2-station rotary table, capable of printing and loading/unloading at the same time;

• 3-8 products can be printed at the same time;

• Seamless stitching printing ensures high quality and perfect images;

• W+CMYK printing function is provided to achieve multiple color printing options;

• Easy conversion of image settings to improve operational efficiency;

• Optional conveyor automatic loading function to improve production efficiency;

• Optional pre-treatment method, flame or corona (optional), can enhance substrate adhesion;

• Automatic cleaning system, automatic cleaning for maintenance and ink management;

• Ideal solution for large-volume cylindrical printing needs.





CAN PRINT 3-8 PRODUCTS SIMULTANEOUSLY

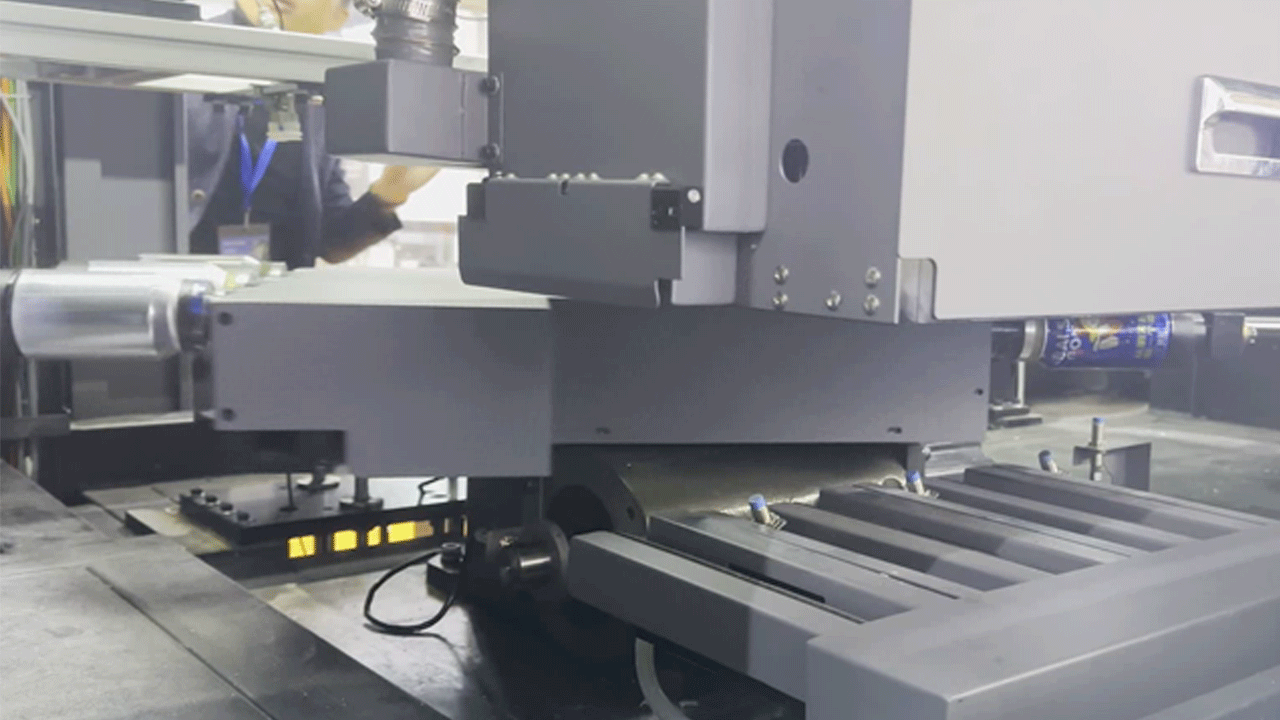

2 Station with Rotary Table（1 workbench is responsible for printing，while the other station handles offloading and loading）

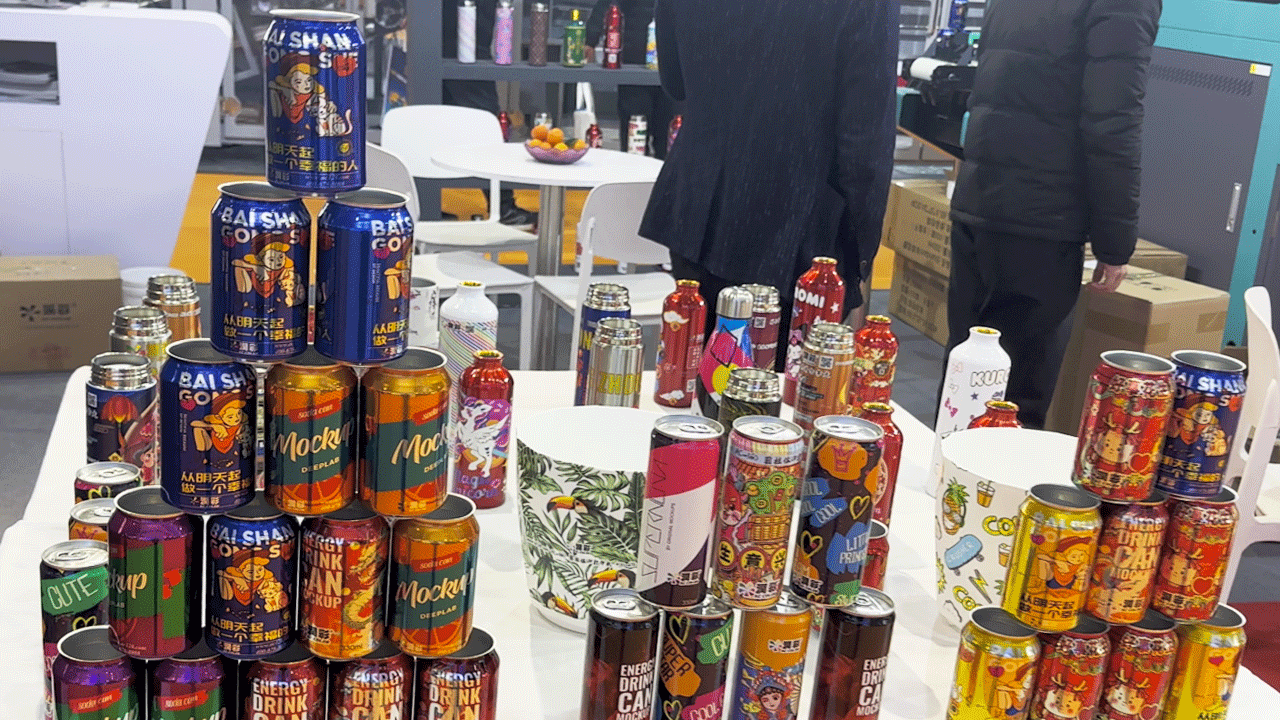

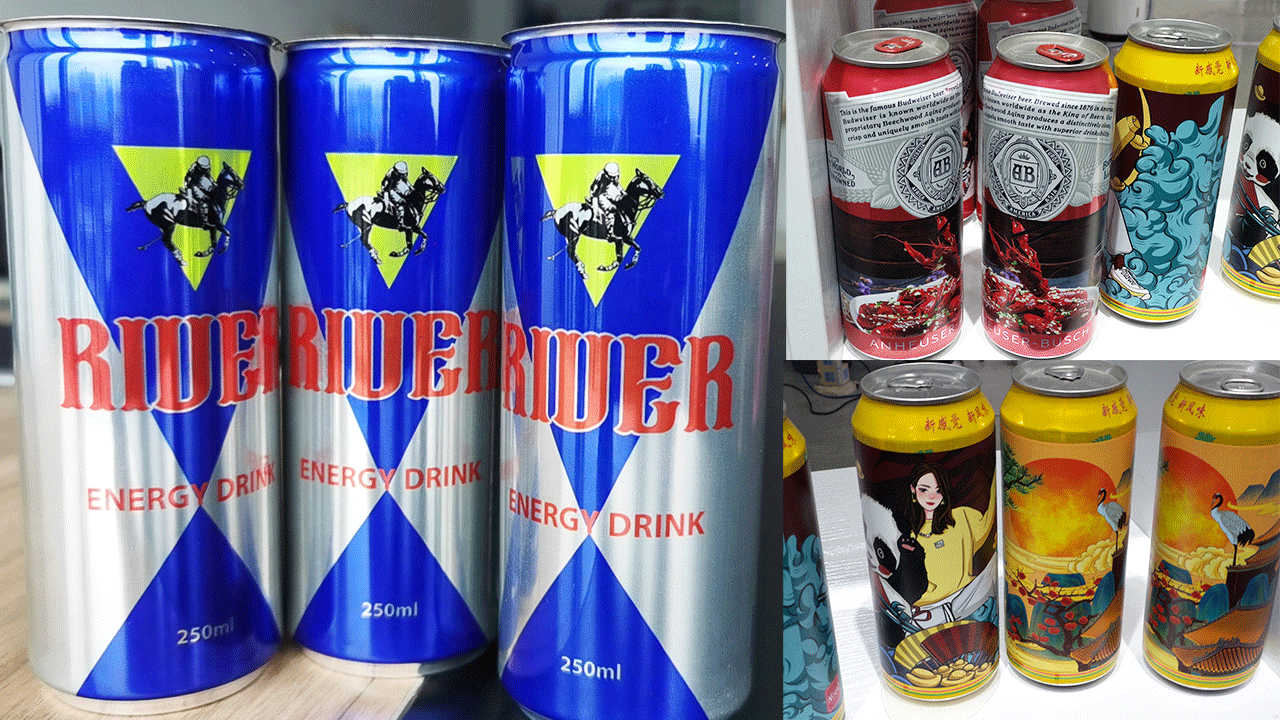

ALUMINUM CANS

high-speed digital cylinder printer is a perfect fit for aluminum cans of all sizes. From coffee cans to wine cans to beer cans and crowlers, this machine automates the digital printing process. Automatically load, pre-treat, print and then unload your product from the machine. The end result is an eye-catching graphic that is guaranteed to make your product stand out.

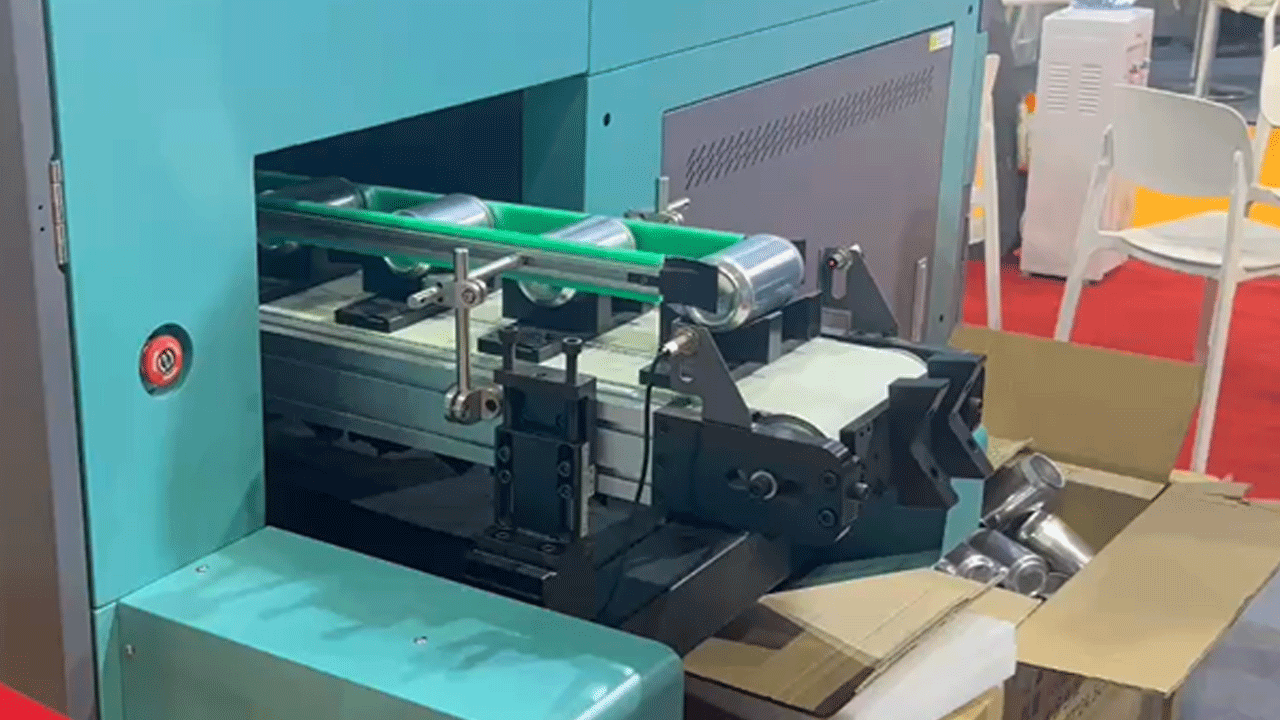

AUTOMATIC LOADING AND UNLOADING OF OBJECTS



AUTOMATIC LOADING AND UNLOADING OF OBJECTS



AUTOMATIC LOADING AND UNLOADING OF OBJECTS

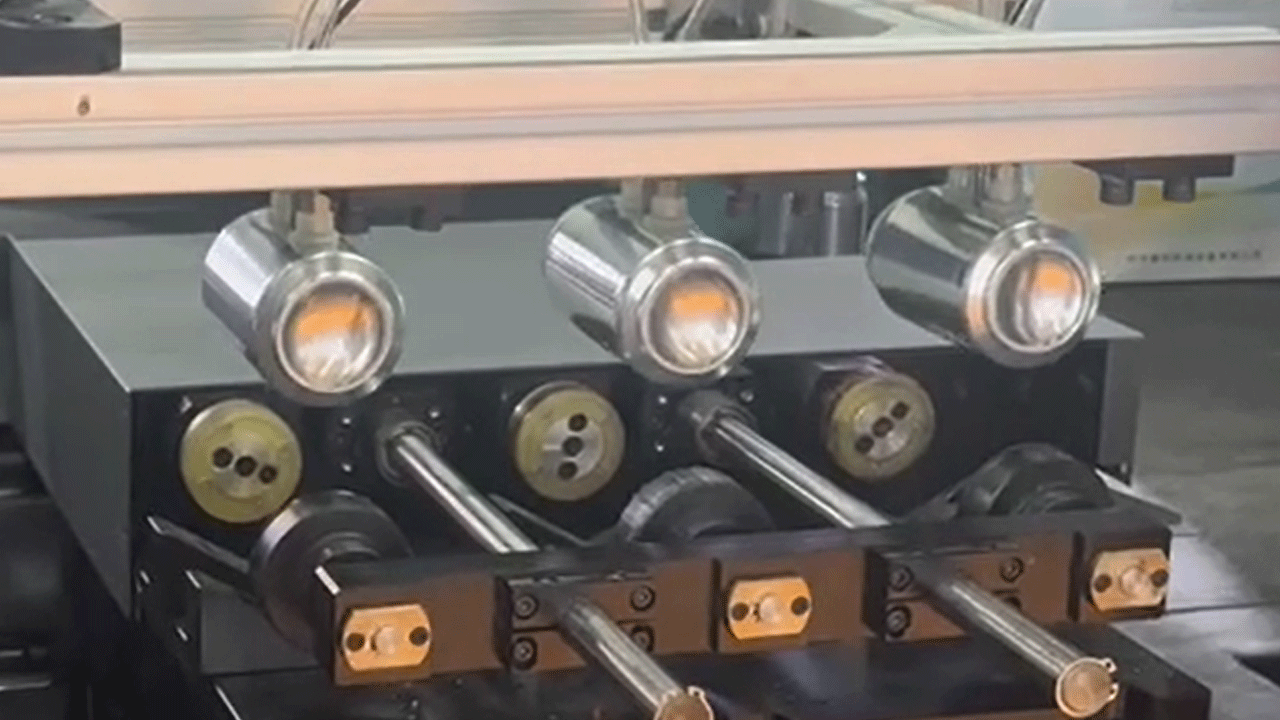

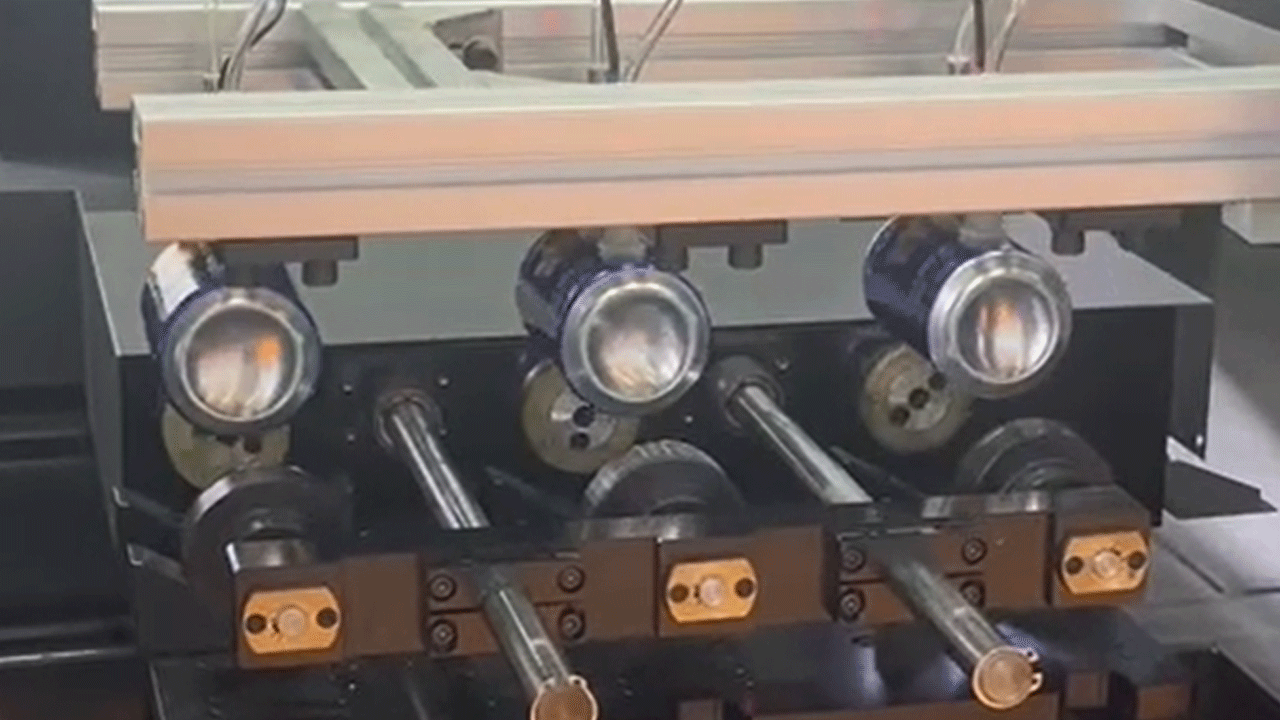

PREPARE TO PRINT

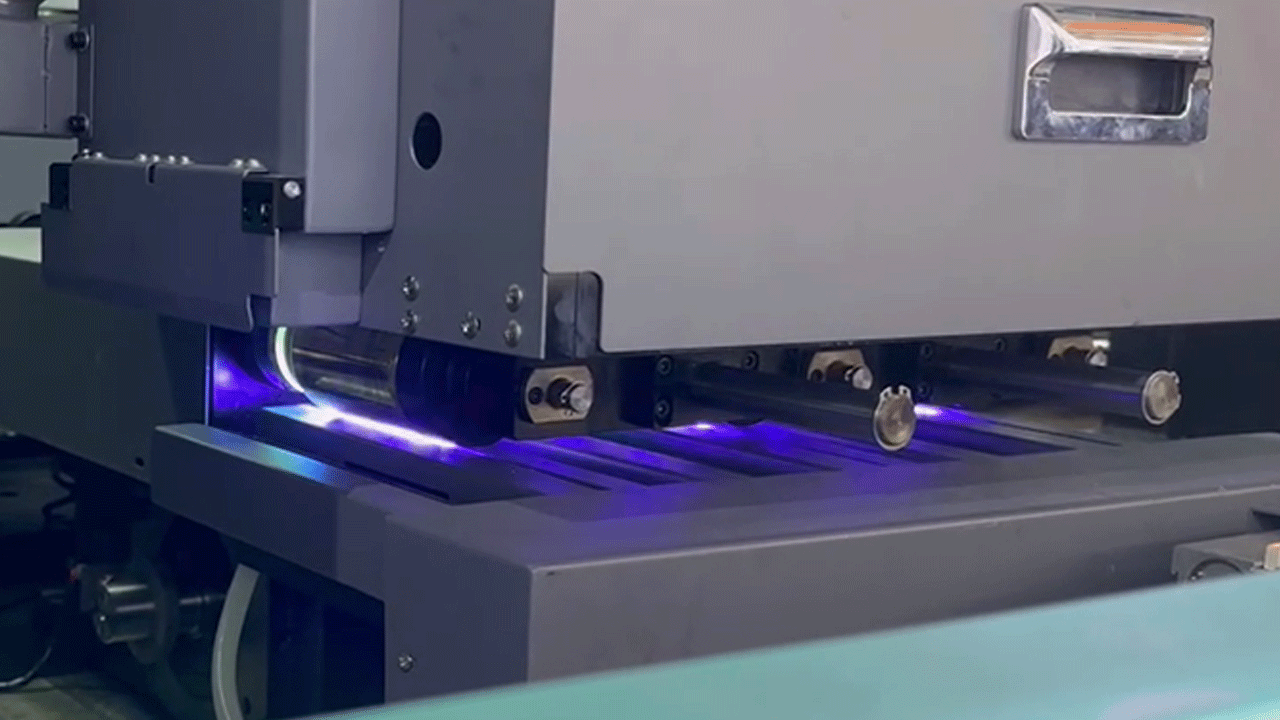

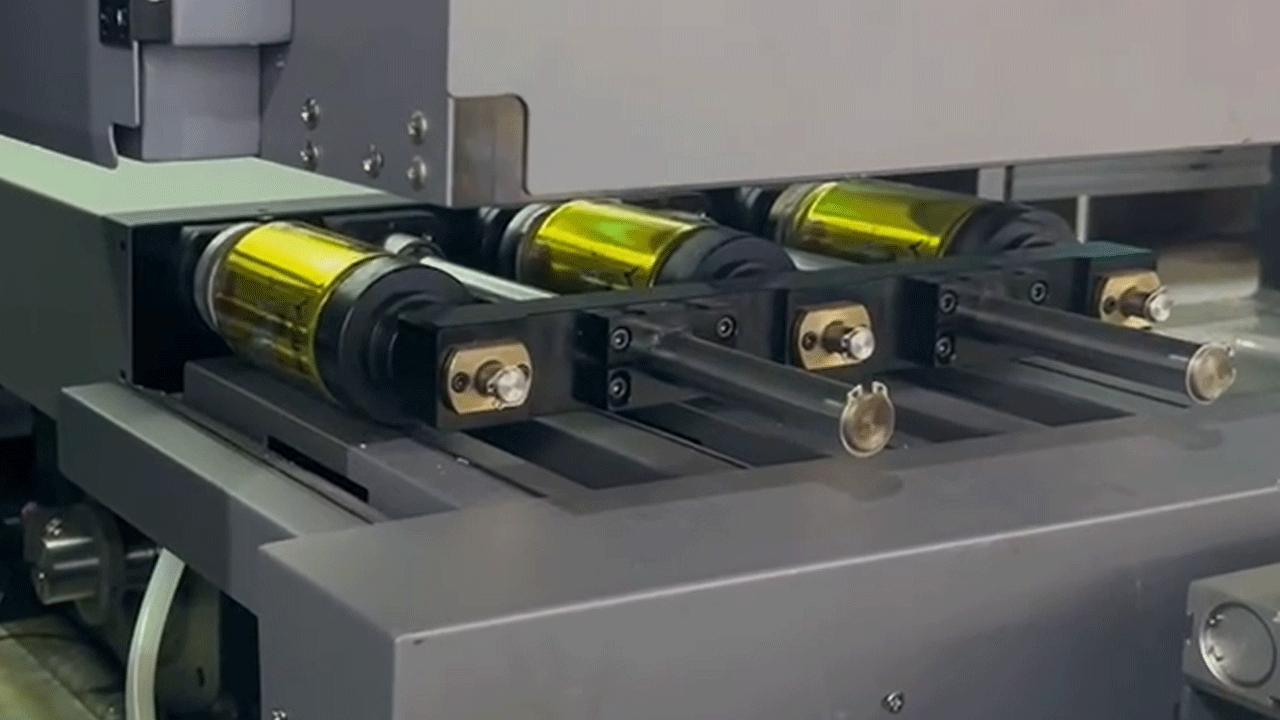

PRINTING IN PROGRESS





IDEAL SOLUTION FOR HIGH-SPEED PRINTING OF ALUMINUM CANS

This seamless operation ensures efficient and high-quality printing,  ideal solution for cylindrical printing needs.
