Tumbler and Bottle Printer / AC COLOR Cylindrical Printer

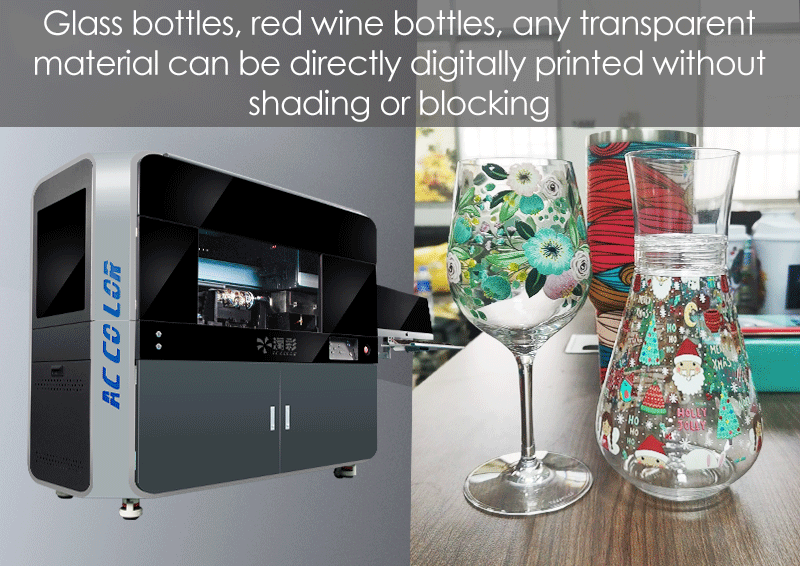

Glass bottles, red wine bottles, any transparent material can be directly digitally printed without shading or blocking.

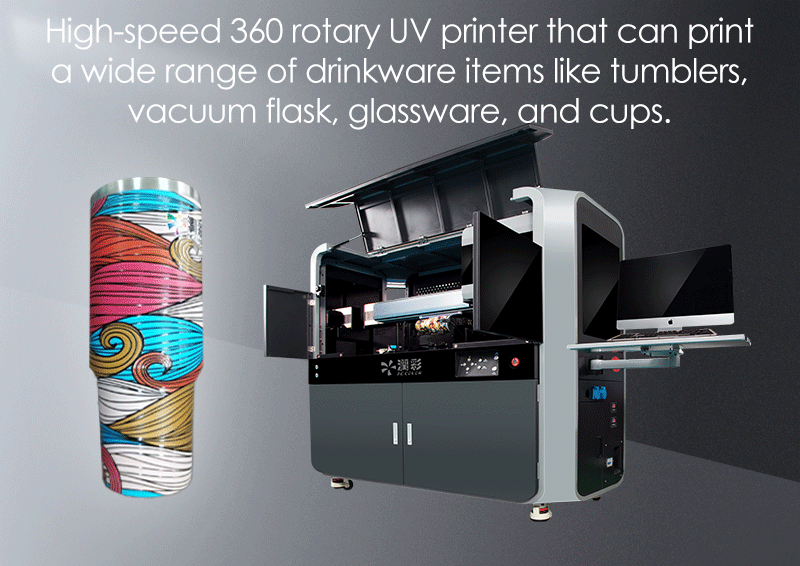

High-speed 360 rotary UV printer that can print a wide range of drinkware items like tumblers, vacuum flask, glassware, and cups.
Industrial Inkjet Printer for 360° Seamless Taper/ Cylinder Printing
Glass bottles, red wine bottles, any transparent material can be directly digitally printed without shading or blocking
Inkjet Printers in general offer unprecedented possibilities for direct-to-shape printing. Accolor cylindrical inkjet printers are designed for printing on either flat- or taper-walled cylindrical objects such as water bottles, pint glasses and other drinkware.
With rotary inkjet printer using accolor, you now have the ability to print in a full 360 degrees directly on an object in full CMYK+W+V, thus eliminating the step of applying a label to the object. With inkjet, short-run bottle printing is also now possible. Water bottle printers, wine bottle printers, squeeze bottle printing, it’s all possible on our cylindrical inkjet printers.
A Cylindrical Inkjet Printer For Every Application
Suitable for digitally printing on all types of containers, including beverage cans (necked), aluminum tubes, water bottles, glass cups, laminated plastic tubes, rigid plastic caulk & adhesive tubes, aluminum aerosol cans (necked), screw top wine bottle caps/ sleeves, tapered plastic or aluminum drinkware cups, lip balm tubes, plastic shampoo bottles, and other types of round or tapered containers, Full 360º Seamless Wrap Printing.
TECHNICAL PARAMETER
| Model NO.: | AC-HSC / T |
| Printing Specifications: | One Row One Stations |
| Printhead Configuration: | TOSHIBA |
| Max print drop height: | Toshiba18mm |
| Printhead Precision (PL): | 3.5 |
| Printhead Quantity Option (pcs): | 2-6 |
| Ink Option: | W+CMYK+V / P, L(Optional) |
| RIP Software: | RIP / ONYX(optional) |
| Curing Method: | Water-Cooled LED Curing |
| Feeding Method: | Customized Fixture |
| Print size(mm)： | Diameter (40-150) and Length(0-240) 5 taper [customization: Φ(40-150)*H(0-350) ] |
| Printing Speed (pcs/h): | 60 - 90 |
| Printing Resolution (dpi): | Max600*1800 |
| Power Supply Requirements: | 220V / 2500W |
| Operating System: | Microsoft Windows 10 |
| Environmental Requirements: | Temperature 20-28 ℃ Relative Humidity 40-60% |
| Package size (mm): | 1880X1220X1780 |
| Overall Weight (kgs): | Net weight:550 / Gross weight:620 |
ADVANTAGES OF DIGITAL PRINTING TECHNOLOGY
• Small batch orders are no longer expensive
• Artwork changes are completed instantly with zero downtime
• No need for film, printing plate, screen or prepress chamber
• Excellent printing quality, photo realistic and stunning graphics
• Provides a resolution of up to 1800 dpi when printing
• Automatic scanning and modeling of irregular products
• Electric adjustment of product height and angle
• The maximum adjustable angle of product taper is ＜10 °
• Automatic internal circulation system for print head
• Automatic cleaning and maintenance module, more worry free
Automatic scanning and modeling of irregular products
Accolor's self-developed automatic modeling system, when the first printing of irregular products requires manual product outline drawing, this automatic modeling device will automatically generate the outline of the product by passing the spray car over the product, and then import it into the printing system, so that the image will not change when printing irregular products.
UV TRANSPARENT CURING
Transparent products such as plastic bottles and glassware can be printed without the need to fill the container with substances that block ultraviolet radiation. This UV transparent curing technology reduces wear on the print head, improves the production process, and ensures that your product remains uncontaminated inside. The accolor uses a unique curing lamp to ensure uniform fixation of radiation within the radius, taper, and curvature range of the container.
HIGH DROP PRINTING
Specially designed for direct printing of objects with a drop of less than 10mm and conical/cylindrical printing objects
TAPERED OBJECT PRINT
The ACCOLOR cylindrical inkjet printer prints directly on conical objects. Adjust the fixture tilt according to the shape of the object until it is parallel to the spray truck, and establish an object contour model to import into the printing system.
INNOVATION PRINTING
Integrated multiple proven and innovative technologies of great significance to achieve perfect print output effects on tapered/ cylindrical objects, be it metal, glass, wood, plastic, paper and many more. completely built for direct printing on cylindrical and coneformed objects such as bottles, thermoses or cans.
Produces crisp sharp print around the bottle even at high speed printing up to 900x1800 dpi.
VARNISH EFFECT
The surface of the product emits a shiny and oily effect. It is precisely during UV printing that an additional layer of glossy varnish is applied on top of the product, adding more gloss to the originally humorous and dull product, making it more vivid and vibrant.
GLASS PRINTING
A glass is a transparent container. Traditionally, UV printing on clear beverage utensils would result in color printing on the outside, but white printing on the inside. accolor uses mirror printing to (cmyk+w+cmyk+v) allow the operator to reverse print the same image to display colored artwork inside and outside the container
ALUMINUM CANS
high-speed digital cylinder printer is a perfect fit for aluminum cans of all sizes. From coffee cans to wine cans to beer cans and crowlers, this machine automates the digital printing process. Automatically load, pre-treat, print and then unload your product from the machine. The end result is an eye-catching graphic that is guaranteed to make your product stand out.
Learn more about printing:
Please email sales@accolor.cn and I will be happy to share more information about printing with you.
One-click output
Not limited by any material, printing high-precision images directly on the medium has a wide range of applications and creates greater value.
Color Chasing
▶ Correct the color difference, if the equipment is used for a period of time, if there is a color difference in the color, the change function can automatically identify the color difference to meet the required color standard, and this function can also be easily achieved for the same color requirements between different inks.
▶ Change the software settings to achieve color uniformity between different devices and different inks.
Meet individual needs
For the majority of designers, UV printing patterns are realistic, rich in layers, layered, artistic and three-dimensional.
Variable droplet technology
The imported Ricoh printhead we use has very powerful variable ink droplet technology.
-When the printer is working, it can intelligently change the size of the ink droplets
-Precise control of image color not only efficiently produces printing effects, but also saves ink usage
-Rich printing layering makes the picture more delicate and the printing quality higher
Dual negative pressure cartridge system
Our carefully designed dual negative pressure cartridge system
-Automatically balance negative pressure to ensure inkjet stability and smoother inkjet
-Backflow device ensures the safety of the negative pressure system and saves ink usage.
-Automatic alarm for lack of ink, and ink can be added without stopping the machine
-The secondary ink supply device effectively controls the output and double high-density filtration to ensure smooth ink and not easy to clog.
