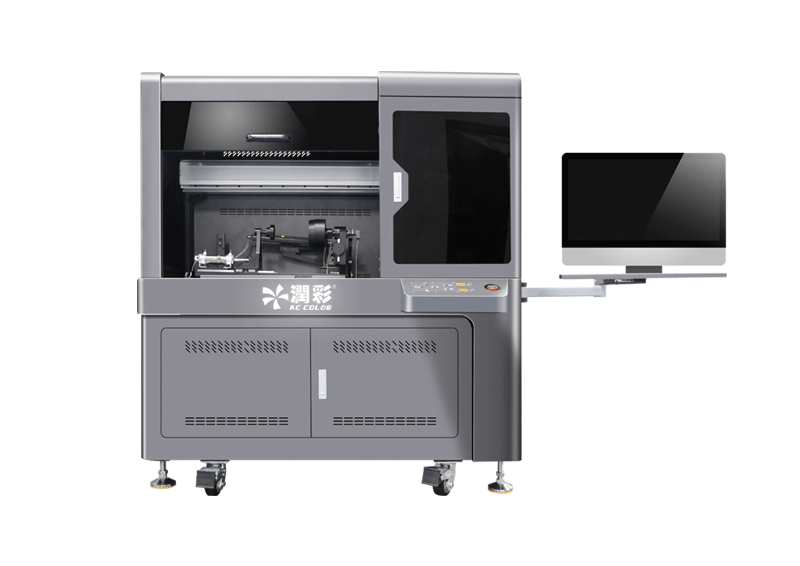

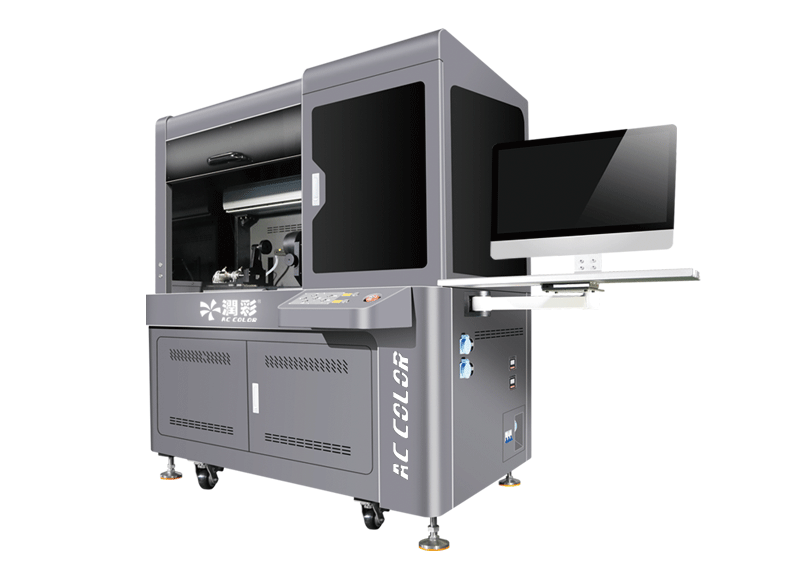

High Productivity UV-LED Inkjet Printer for Taper / Cylinder Printing-AC COLOR Digital Cylinder Printer
Suitable for digitally printing on all types of containers, including beverage cans (necked), aluminum tubes, water bottles, glass cups, laminated plastic tubes, rigid plastic caulk & adhesive tubes, aluminum aerosol cans (necked), screw top wine bottle caps/ sleeves, tapered plastic or aluminum drinkware cups, lip balm tubes, plastic shampoo bottles, and other types of round or tapered containers, Full 360º Seamless Wrap Printing.
High Productivity UV-LED Inkjet Printer for Taper / Cylinder Printing
high speed cylindrical printer
Print cylindrical objects directly. Printing on products such as glass bottles, drinking cups, aluminum cans, plastic bottles, flasks, and many others can now be done digitally, efficiently, and effectively. 900-1800dpi images have fast printing speed and low printing cost. For more information please contact us。
Conical Printing Machine ,360° Rotary UV Printer
Focus on the R&D and manufacturing of various UV printers
Advantages：
1. Fast speed,as fast as 25sec/bottle;
2. CMYK+W+V and varnish can be printed at the same time;
3. Easy operation,don't need make mode and repeat tinted,dry immediately;
4. Print effect,graphic,embossing,hollow out plane,local,frosted effect;
5. Wide application,can be printed on ceramic/glass/wine bottle,thermos bottle,steel cup,pen/food can,conicial cup,shaped cup,etc.
One-click output
Not limited by any material, printing high-precision images directly on the medium has a wide range of applications and creates greater value.
Color Chasing
▶ Correct the color difference, if the equipment is used for a period of time, if there is a color difference in the color, the change function can automatically identify the color difference to meet the required color standard, and this function can also be easily achieved for the same color requirements between different inks.
▶ Change the software settings to achieve color uniformity between different devices and different inks.
Meet individual needs
For the majority of designers, UV printing patterns are realistic, rich in layers, layered, artistic and three-dimensional.
Technical parameter
|
Model NO.: |
AC-HSC |
||
|
Printing Specifications: |
One Row One Stations |
One Row Two Stations |
Two Rows Four Stations |
|
Printhead Configuration: |
EPSON / TOSHIBA |
||
|
Printhead Precision (PL): |
3.5 |
3.5 |
3.5 |
|
Printhead Quantity Option (pcs): |
2 - 3 |
4 - 6 |
4 - 6 |
|
Ink Option: |
CMYK + W + V |
CMYK + Lc + Lm + Lk + W + V |
|
|
RIP Software: |
RIP / ONYX(optional) |
||
|
Curing Method: |
Water-Cooled LED Curing |
||
|
Feeding Method: |
Customized Fixture |
||
|
Print size(mm)： |
Φ(50-150)*H(50-250) 5 taper [customization: Φ(50-300)*H(50-350) ] |
||
|
Printing Speed (pcs/h): |
60 - 90 |
120 - 180 |
150 - 300 |
|
Printing Resolution (dpi): |
600 * 1200 / 1800 |
600 * 1200 / 1800 |
600 * 1200 / 1800 |
|
Power Supply Requirements: |
220V / 2500W |
220V / 2500W |
220V / 2500W |
|
Operating System: |
Microsoft Windows 10 |
||
|
Environmental Requirements: |
Temperature 20-28 ℃ Relative Humidity 40-60% |
||
|
Overall Dimension (mm): |
1300 * 890 * 1575 |
1300 * 1065 * 1530 |
2060 * 1125 * 1665 |
|
Overall Weight (kgs): |
400 |
500 |
700 |
Variable droplet technology
The imported Ricoh printhead we use has very powerful variable ink droplet technology.
-When the printer is working, it can intelligently change the size of the ink droplets
-Precise control of image color not only efficiently produces printing effects, but also saves ink usage
-Rich printing layering makes the picture more delicate and the printing quality higher
Dual negative pressure cartridge system
Our carefully designed dual negative pressure cartridge system
-Automatically balance negative pressure to ensure inkjet stability and smoother inkjet
-Backflow device ensures the safety of the negative pressure system and saves ink usage.
-Automatic alarm for lack of ink, and ink can be added without stopping the machine
-The secondary ink supply device effectively controls the output and double high-density filtration to ensure smooth ink and not easy to clog.

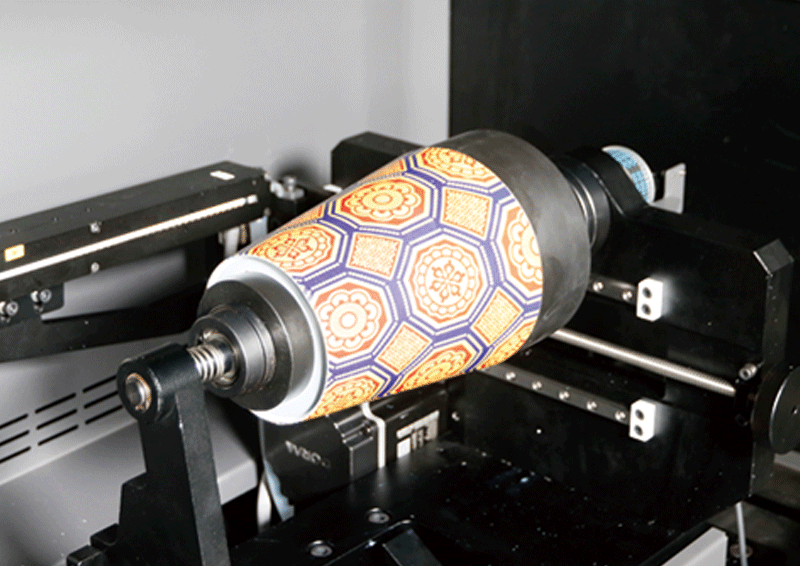

Fixed clamping system
Adopt front and rear clamping, easy and fast operation
-Special jig can meet the assembly of various cylindrical and conical materials and can be customized according to needs
-Three-in-one positioning system ensures correct clamping
-The clamp can be rotated 360 degrees, seamlessly ensuring print quality.

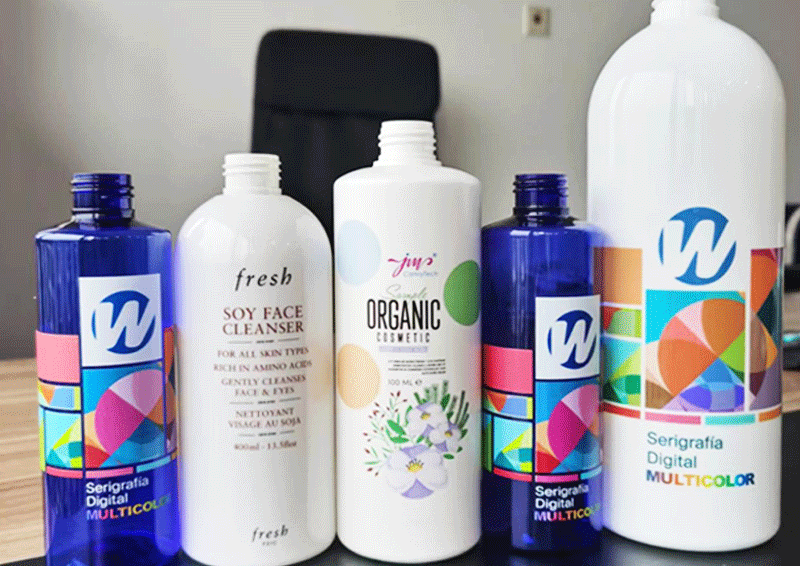

Applications
Products widely used Cans, red wine bottles, flashlights, white wine bottles, aromatherapy, water cups, mugs, coffee cups, cosmetic bottles, shampoo bottles, manicure bottles, etc.
Details
